40G QSFP+ AOC

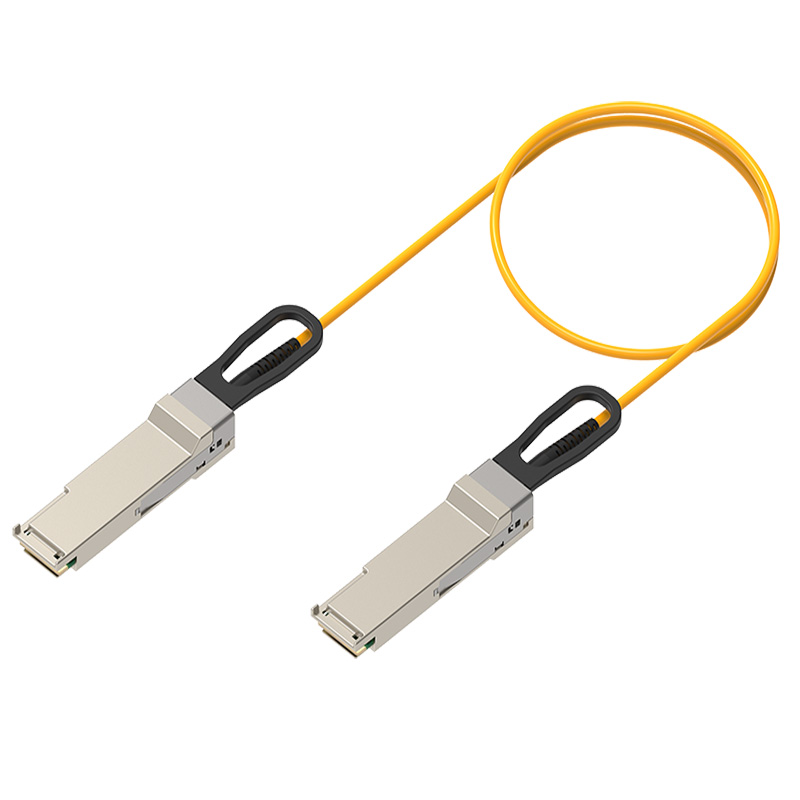

DSQCC-AABBA4-xxx 40G SR4 AOC is a hot-pluggable, parallel 40Gb/s quad small form factor with 850nm wavelength, and is designed for datacom/telecom.
The AOC is compliant with the SFF-8636 QSFP+ transceiver specification and RoHS-6.
The AOC is compliant with the SFF-8636 QSFP+ transceiver specification and RoHS-6.
Feature
- Compliant with the industry standard SFF-8636 QSFP+ transceiver specification
- Full duplex 4 channel 850nm parallel AOC
- High reliability 850nm VCSEL array transmitter
- Hot-pluggable
- Single 3.3V power supply
- Case temperature operating range: 0 ~ 70°C
- RoHS-6 compliant (lead-free)
- Distance:1~100m
Applications
- 10GBASE-SR & 40GBASE-SR4 40G Ethernet
- InfiniBand QDR (4 x 10G), DDR (4 x 5G) and SDR (4 x 2.5G) interconnects
- Datacom/Telecom Switch & Router connections
- High speed multi-channel parallel data connections
Ordering Information
| Part No. | Description | Data Rate | Wavelength | Distance | Temp |
|---|---|---|---|---|---|
|
DSQCC-AABBA4-xxx |
40G SR4 AOC |
4*10G 40GbE |
850nm |
1~100m |
0~70℃ |
xxx is Distance.
For more information, please contact anketitech.info@gmail.com
