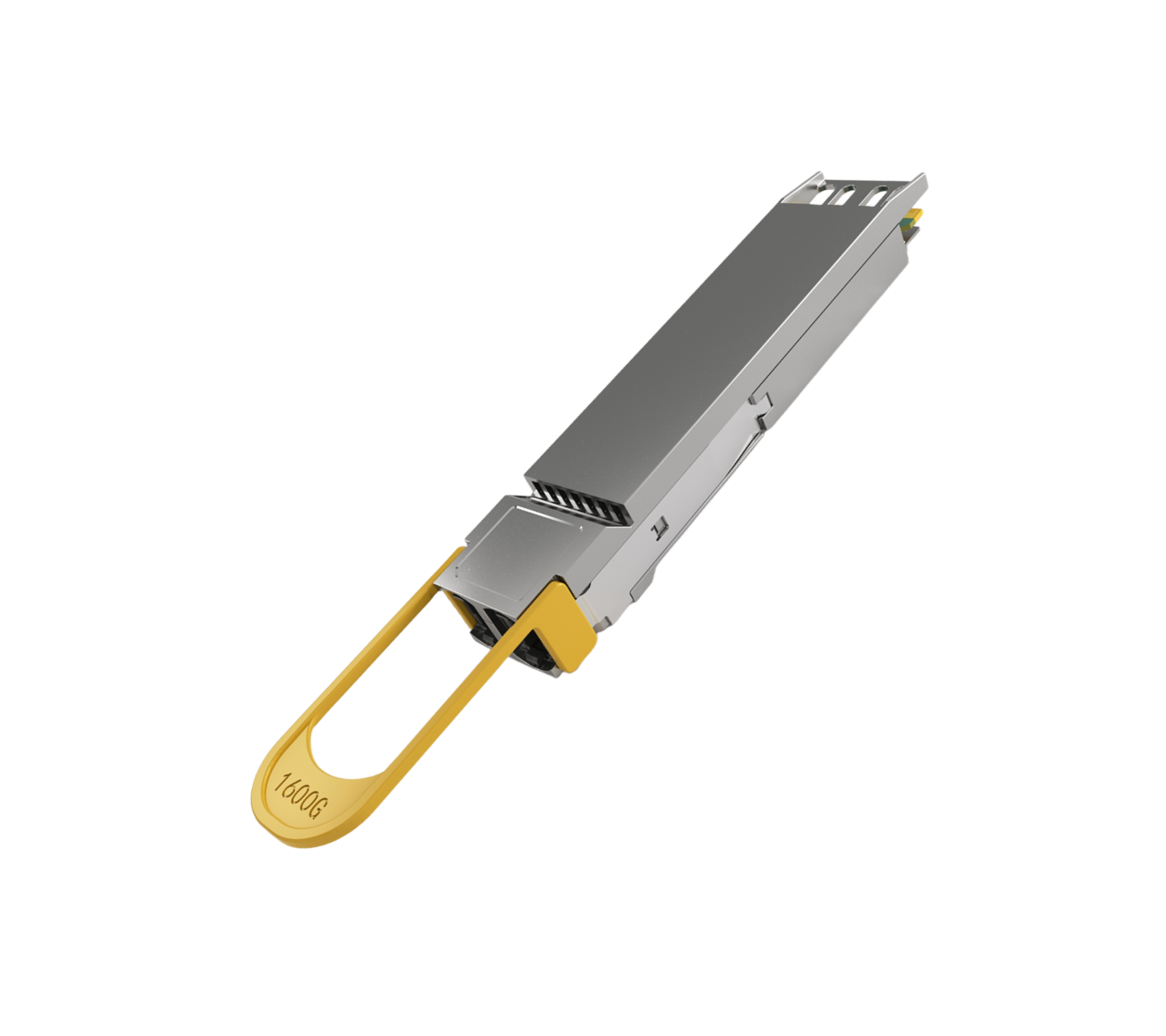

1.6T OSFP
We offer DR8 LPO/DR8 LRO/DR8 DPO and 2*FR4 DPO transceivers for various distances and applications.
The firmware supports CMIS 5.2 or higher.
FEATURES
• Compliant with IEEE 802.3dj
• 200Gbps/lane electrical and optical (8 lanes)
• OSFP1600 and OSFP1600-RHS form factor for high faceplate density in networking equipment
• Dual MPO-12 connector for single-mode parallel cable infrastructures
• Up to 500m (DR8) or 2Km (DR8+)
• Available with integrated heat sink (IHS flat top) or without heatsink (RHS)
• Typical power dissipation <26W
• Operating temperature range: 0 to 70°C
• CMIS-compliant management interface with full module diagnostics and control through I2C
• RoHS-6 Compliance
APPLICATIONS
• 1.6Tb/s connectivity, 2x800GbE breakout connectivity for large-scale cloud and enterprise data centers
• Ethernet and InfiniBand switches, routers, and client-side telecom interfaces
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp |
| DCOUC-22RRB8-L12 | 1.6T DR8 LPO | 8*200G PAM4 | 1310nm | 500m | Dual MPO 12 | C |
| DCOUC-22RRB8-R12 | 1.6T DR8 LRO | 8*200G PAM4 | 1310nm | 500m | Dual MPO 12 | C |
| DCOUC-22RRB8-M12 | 1.6T DR8 DPO | 8*200G PAM4 | 1310nm | 500m | Dual MPO 12 | C |
| DEOHC-CWRRA8 | 2*FR4 DPO | 8*200G PAM4 | CWDM | 2Km | Dual Duplex LC | C |
For more information, please contact Sales@anketitech.com
