50GPON

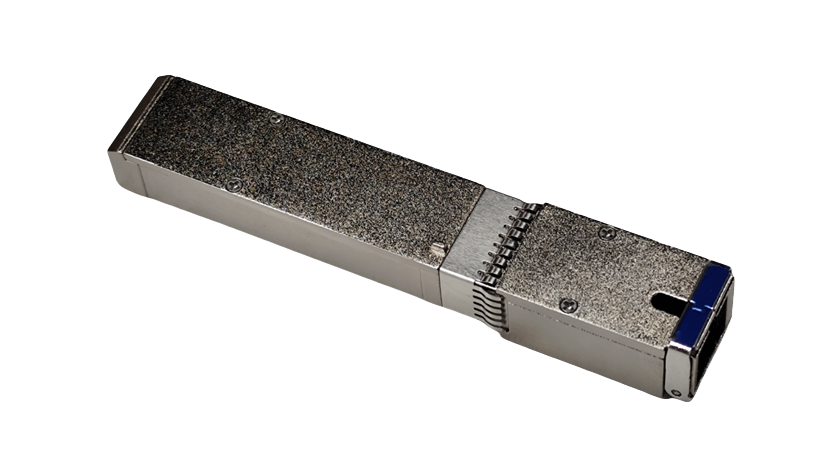

50G PON OLT Triple-Mode Application
The core adopts a triple-mode Combo solution integrating GPON/XG(S)-PON/50G PON, enabling simultaneous compatibility with three generations of PON technologies on the same OLT port and ODN fiber. This achieves smooth network evolution, on-demand bandwidth upgrade, and multi-service hybrid bearer.The equipment supports a temperature range (0–70℃), meets the CLASS C+/B+ link budget specifications, and can stably support 20km application scenarios.
The core adopts a triple-mode Combo solution integrating GPON/XG(S)-PON/50G PON, enabling simultaneous compatibility with three generations of PON technologies on the same OLT port and ODN fiber. This achieves smooth network evolution, on-demand bandwidth upgrade, and multi-service hybrid bearer.The equipment supports a temperature range (0–70℃), meets the CLASS C+/B+ link budget specifications, and can stably support 20km application scenarios.
FEATURES
- Single-fiber bi-directional transmission
- 50G-PON Asym.: Continuous Mode TX 49.7664Gbps, Burst Mode RX 24.8832Gbps
- XGS-PON: Continuous Mode TX 9.95328Gbps, Burst Mode RX 9.95328Gbps
- GPON: Continuous Mode TX 2.48832Gbps, Burst Mode RX 1.24416Gbps
- SFP-DD package
- SC/UPC receptacle optical connector
- Hot-pluggable
- 3.3 V power supply
- Operating case temperature: 0°C to 70°C
- High power 1490nm DFB & 1577nm EML & 1342nm EML
- High sensitivity 1310&1270&1286nm APD
- Support 20km transmission distance with SMF
- SD indication
- Low EMI and excellent ESD protection
- Digital diagnostic monitor interface
- RoHS10 compliant
APPLICATIONS
- 50G-PON Asym., XGS-PON and GPON OLT
- FTTx
| Part No. | Description | Data Rate | Wavelength | Distance | Connector | Temp |
|
P2DSC-7599A3 |
50G-PON |
49.766G/49.766G(24.8832G) |
1342T/1286R | 20Km | SC/UPC |
C |
| XGS-PON | 9.953G/9.953G | 1577T/1270R | ||||
| GPON OLT | 2.488G/1.244G | 1490T/1310R | ||||
| P2QSC-5799A3 | 50G-PON ONU | 49.766G(24.8832G)/49.766G | 1286T/1342R |
