Passive Copper Cable
Passive Copper Cables are engineered to support next-generation data center architectures with speeds of up to 8*100G PAM4, extending the transmission reach of copper cabling to 2.0 meters while reducing costs and ensuring superior signal integrity and thermal management.
Features

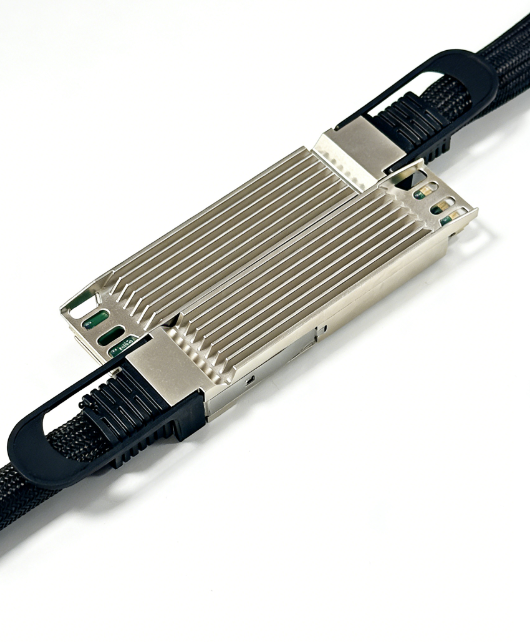

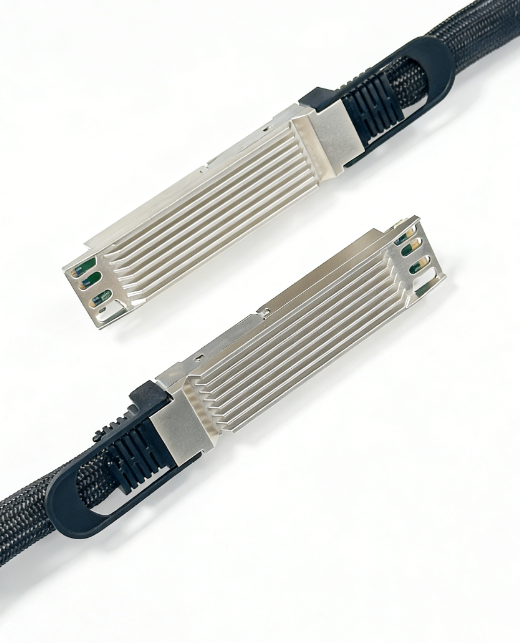

- 800G OSFP Finned Top to 800G OSFP Finned Top
- Sixteen differential copper Pairs
- Straight and break out assembly configurations available
- 26AWG or 30AWG cable size
- Maximum Link Length: Up to 2m
- Based on 8-channels of 100G-PAM4
- 800Gb/s data rate
- Low Power Consumption: 0.1W max per end
- Single +3.3 V power supply
- Hot-pluggable
- RoHS compliant
- Operating case temperature: 0°C to 70°C
Applications
- Low Latency Communication System
- Switches, servers and routers
- Data Center networks
- Storage area networks
| Part No. | Description | Data Rate | Length(m) | AWG | Package | Temp |
|
DAJ3C-00QQA8-11x |
800G to 800G DAC | 8*100G PAM4 | Up to 2m | 26/30 | OSFP to OSFP | C |

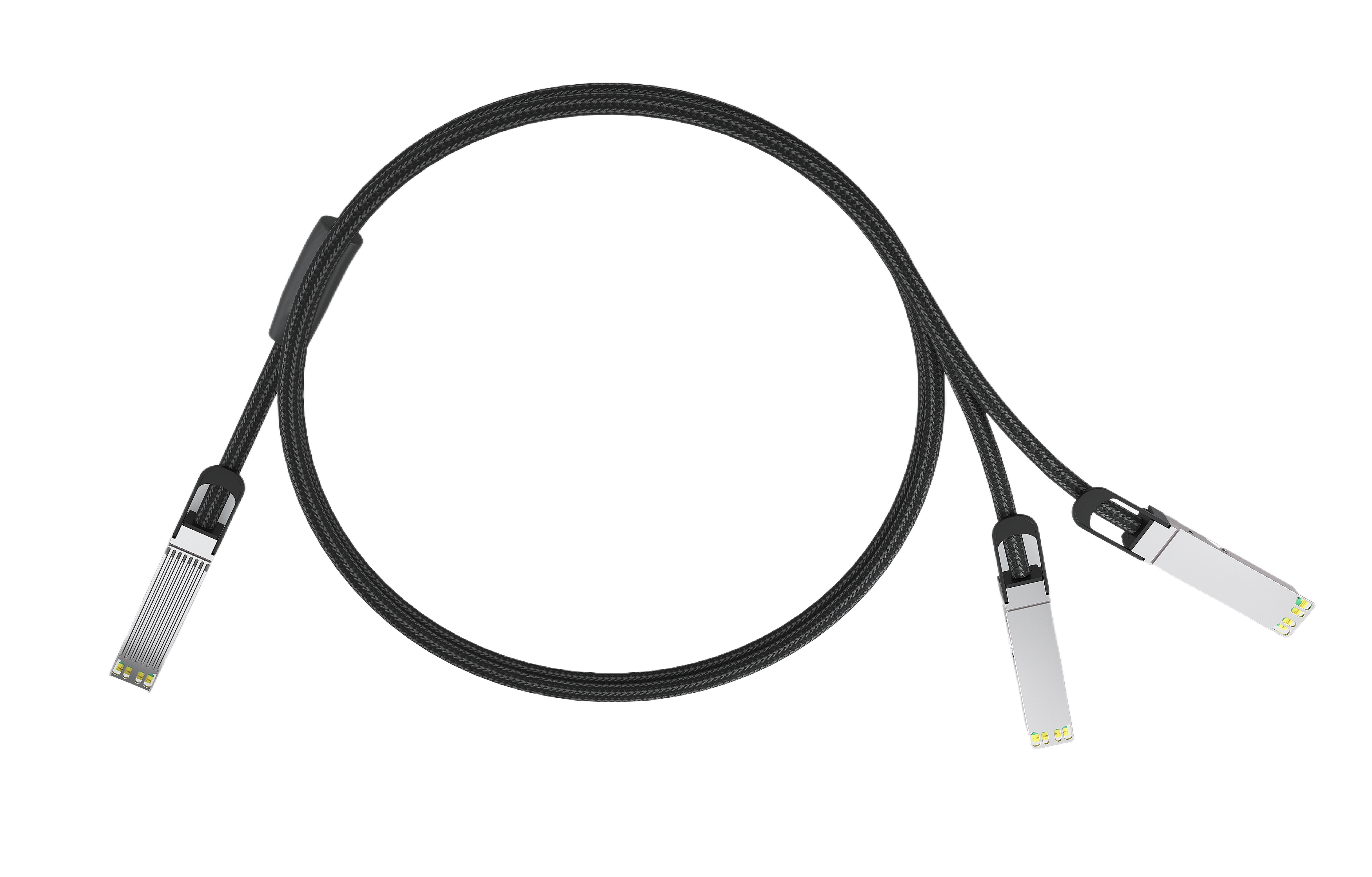

| DAJ3C-00QQA8-12x | 800G to 2*400Gb/s Splitter DAC | OSFP to OSFP | C | |||
| DAA3C-00QQA8-12x | 800G to 2*400Gb/s Splitter DAC | OSFP to QSFP112 | C | |||
| DAA3C-00QQA8-14x | 800G to 4*200Gb/s Splitter DAC | OSFP to QSFP112 |
C |
For more information, please contact Sales@anketitech.com
