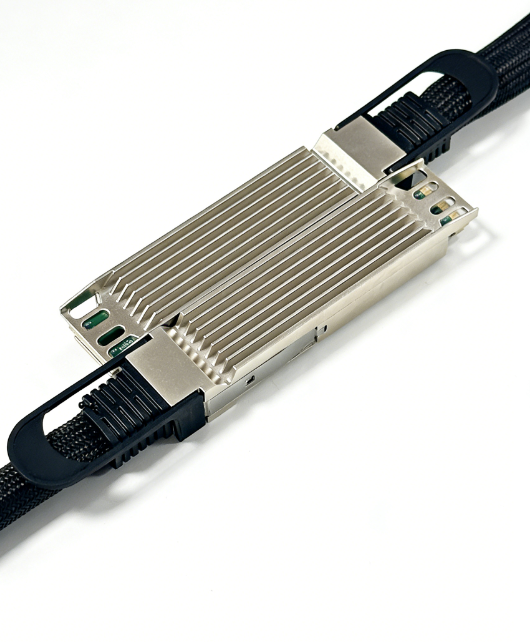

Active Electrical Cable
Active Electrical Cable enables next-generation data center designs supporting speeds of up to 8*100G PAM4, extending the reach of copper cables to 7.0 meters while reducing costs and ensuring superior signal integrity and thermal management.
Features
- 800G OSFP Finned Top to 800G OSFP Finned Top
- 28AWG cable size
- Maximum Link Length: Up to 7m
- Based on 8-channels of 100G-PAM4
- 800Gb/s data rate
- 10.5W max per end
- Single +3.3 V power supply
- Hot-pluggable
- RoHS compliant
- Operating case temperature: 0°C to 70°C
Application
- 800 Gigabit Ethernet
- Data Center
- Switches, servers and routers
| Part No. | Description | Data Rate | Length(m) | AWG | Package | Temp |
| DAJ1C-00QQA8-11x | 800G to 800G AEC | 8*100G PAM4 | Up to 7m | 26/30 | OSFP to OSFP | C |
| DAJ1C-00QQA8-12x | 800G to 2*400Gb/s Splitter AEC | OSFP to OSFP | C | |||
| DAA1C-00QQA8-12x | 800G to 2*400Gb/s Splitter AEC | OSFP to QSFP112 | C | |||
| DAA1C-00QQA8-14x | 800G to 4*200Gb/s Splitter AEC | OSFP to QSFP112 | C |
